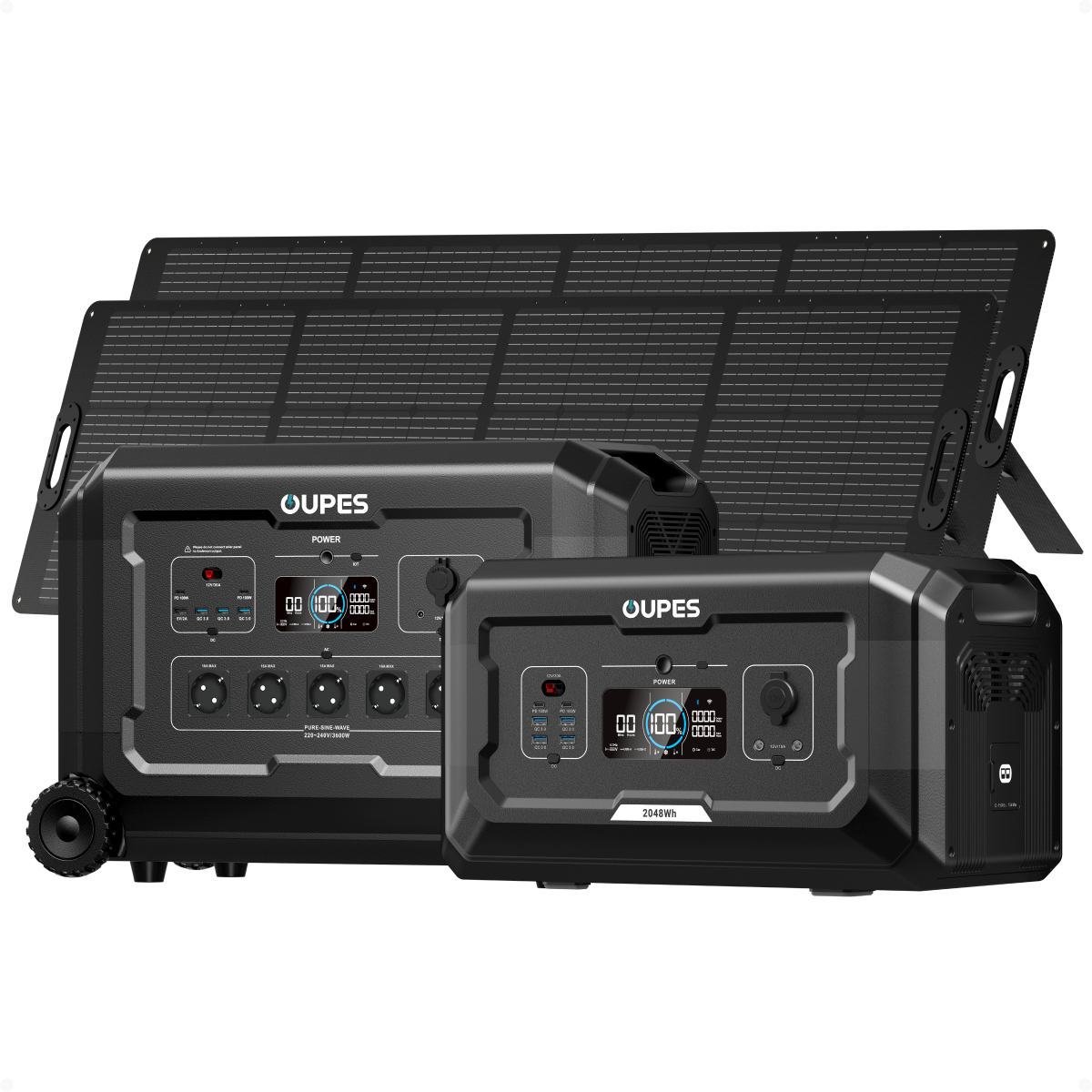

Mega 3 + B2 Extra Battery + 2*240W Solar Panel | Solar Generator Kit

Sale price€3.499,00
  • 3,072Wh Capacity | 3,600W AC Pure Sine Wave Inverter (7,000W Surge)

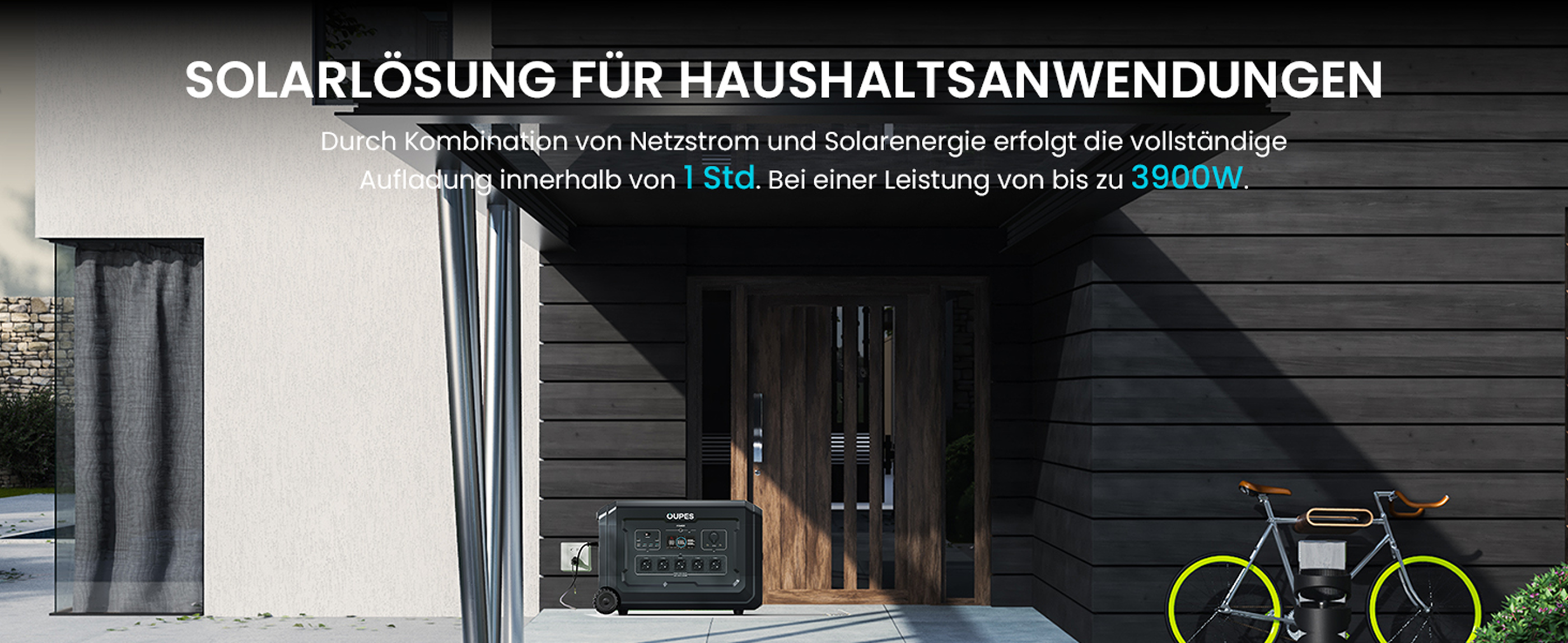

  • Fully recharge in 1 hour with 3,900W Max. Input (AC+solar)

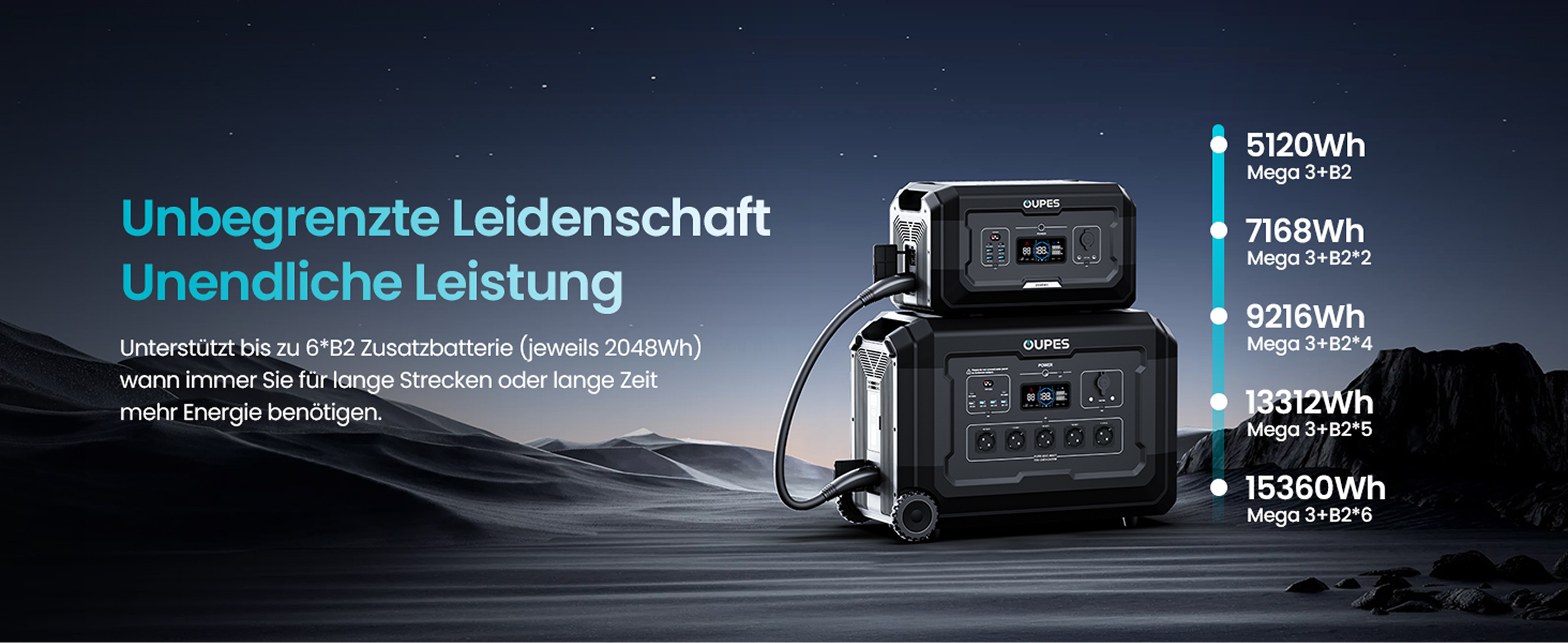

  • Expandable Up to 15.36kWh with B2 * 6

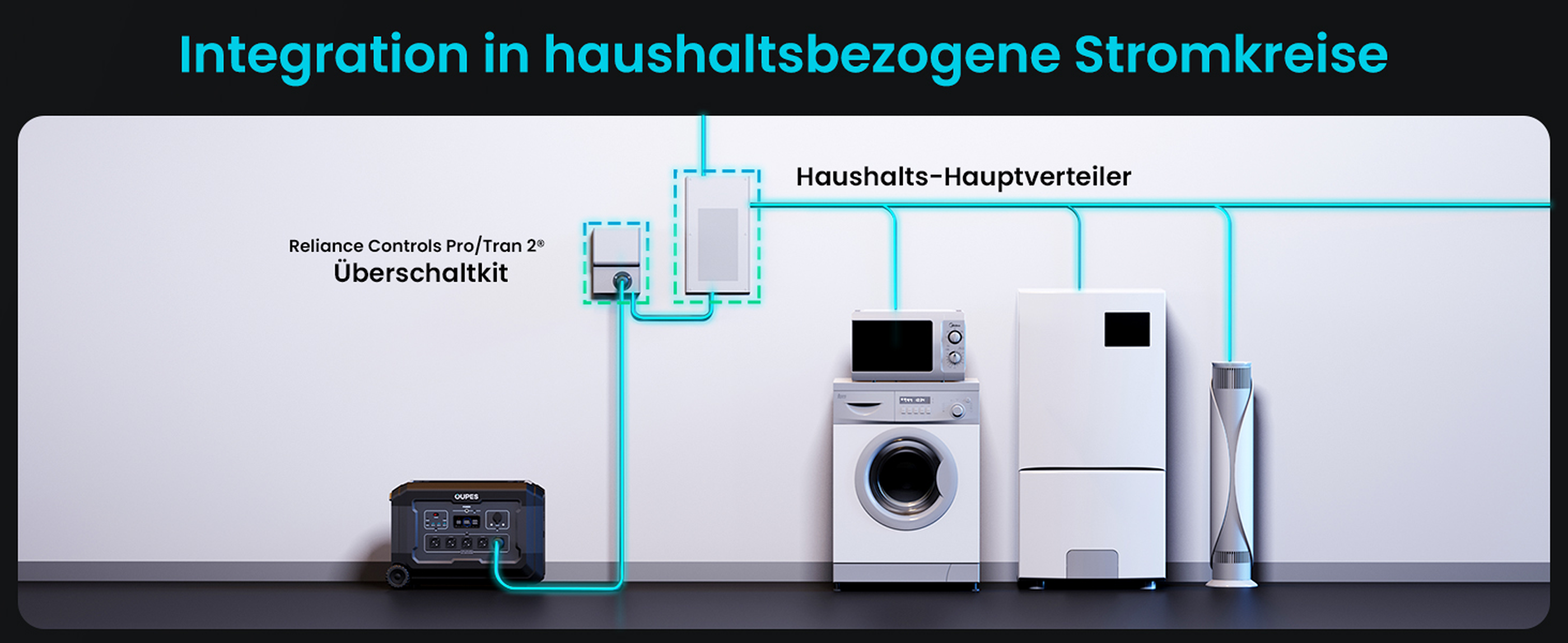

  • Seamless UPS Backup (2,200W Max)
  • Adjustable Recharge (900W-1,800W AC input)
  • LiFePO4 Battery with 3,500+ Life Cycles to 80%
  • 16 Outputs For Multiple Devices

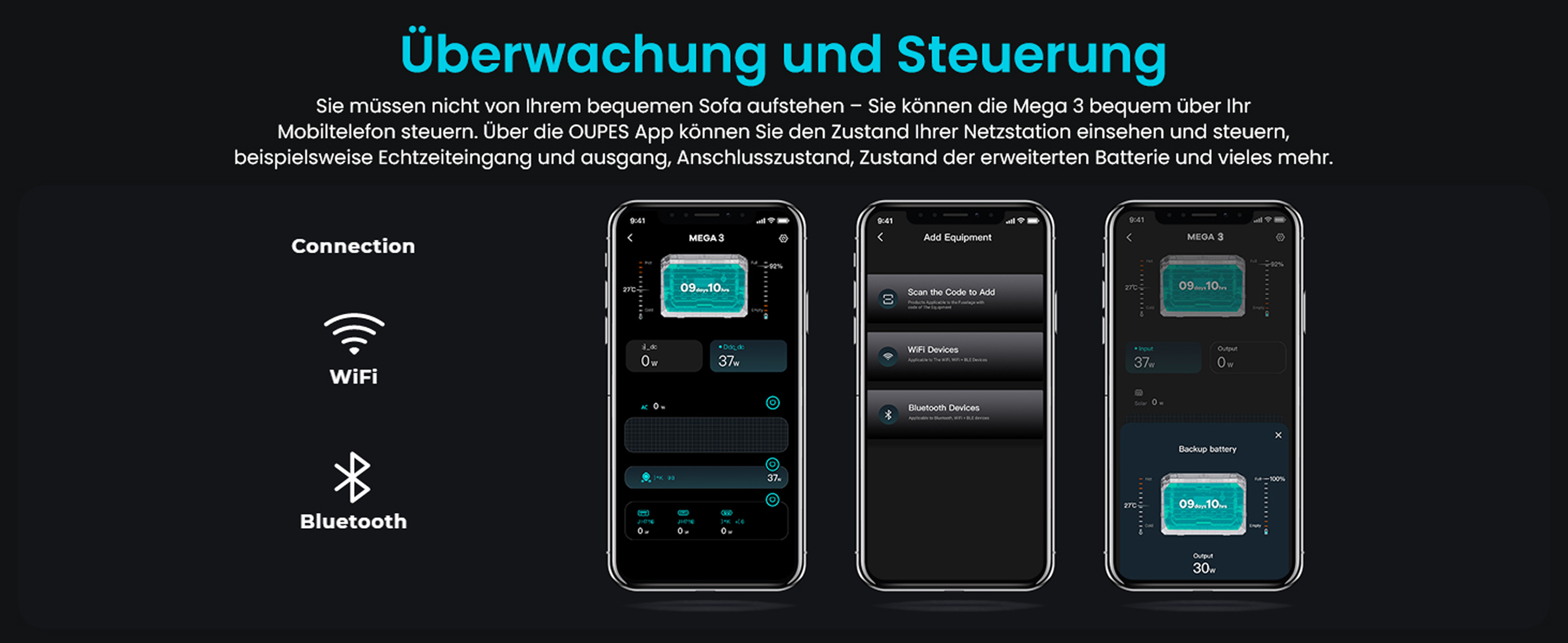

  • Smart Control & Monitor in OUPES App
View More
Jump link
30-Day Price Match

Up to 55% OFF

Shop More Items

Warranty Upgraded! 5+1 years!

Claim your FREE 1-year Extension Now >>

Get a 30% tax credit* for installing Mega 3 as home power solution. 30% federal tax credit may end on Dec 31. 2025.

Select Options
Sale price€3.499,00
BUY IT NOW
5% of sales will be donated to the OUPES HELP project for those in need. Learn more >
Not sure which unit you need? Try our calculator

Fast
shipping

30-Days
Money Back

5+1 Years
Warranty

Lifetime customer
support

Power your ktichen Power your game&work Power your campsite

Specs

Mega 3 B2 Extra Battery 240W Solar Panel

BATTERY

  • Basic Capacity 3072Wh
  • Expansion Capacity Up to 15.36kWh with 6 B2
  • Type LFP (LiFePO4)
  • Cycles > 3500 cycles to 80%
  • UPS/EPS < 20ms, 2200W
  • BMS Yes

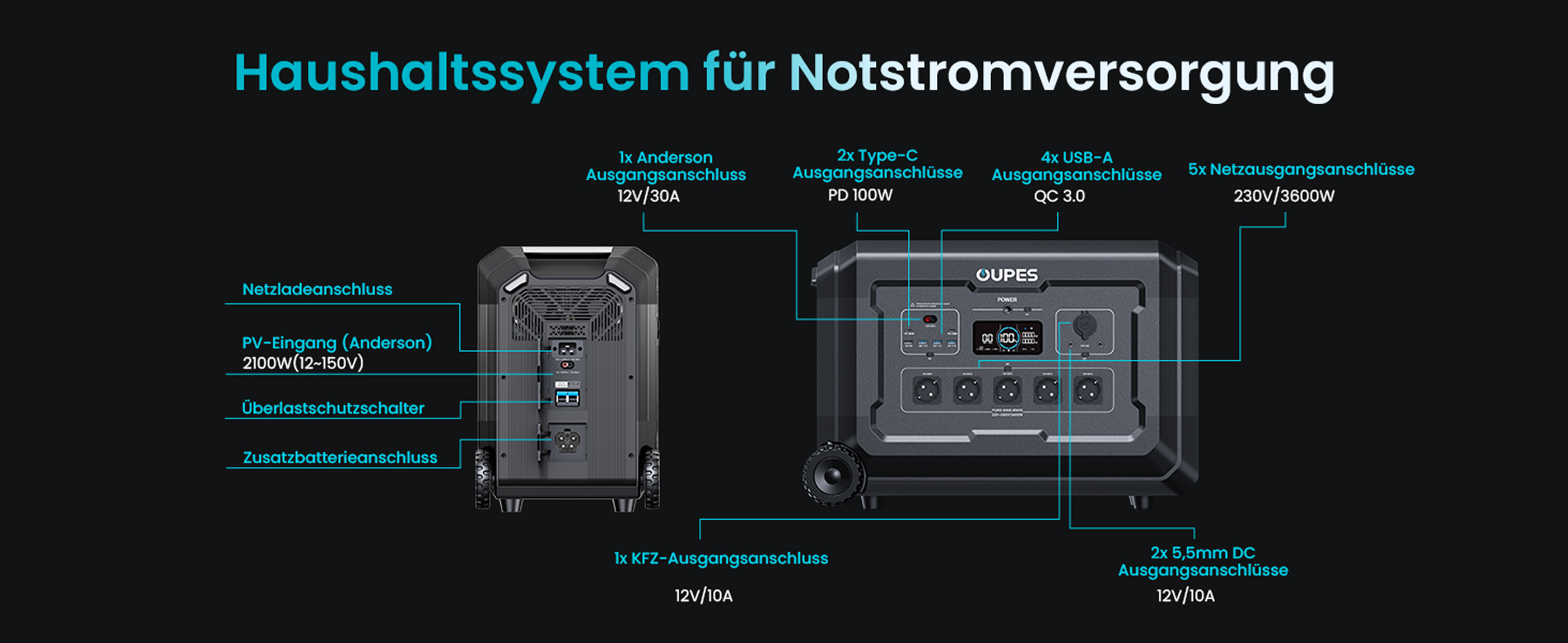

OUTPUT

  • AC Output Power 3600W (Surge 7000W)
  • Inverter Type Pure Sine Wave
  • AC Outlets 5*NEMA 5-20R (120V/20A)
    1*TT-30R (120V/30A)
  • USB-A Output 4*USB-A (QC 3.0)
  • USB-C Output 2*USB-C (PD 100W per port)
  • 12V DC Output 2*DC 5521 (12V/10A)
    1*Anderson (12V/30A)
    1*Car Lighter (12V/10A)

INPUT

  • Fast AC Charging 1800W
  • Slow AC Charging 900W

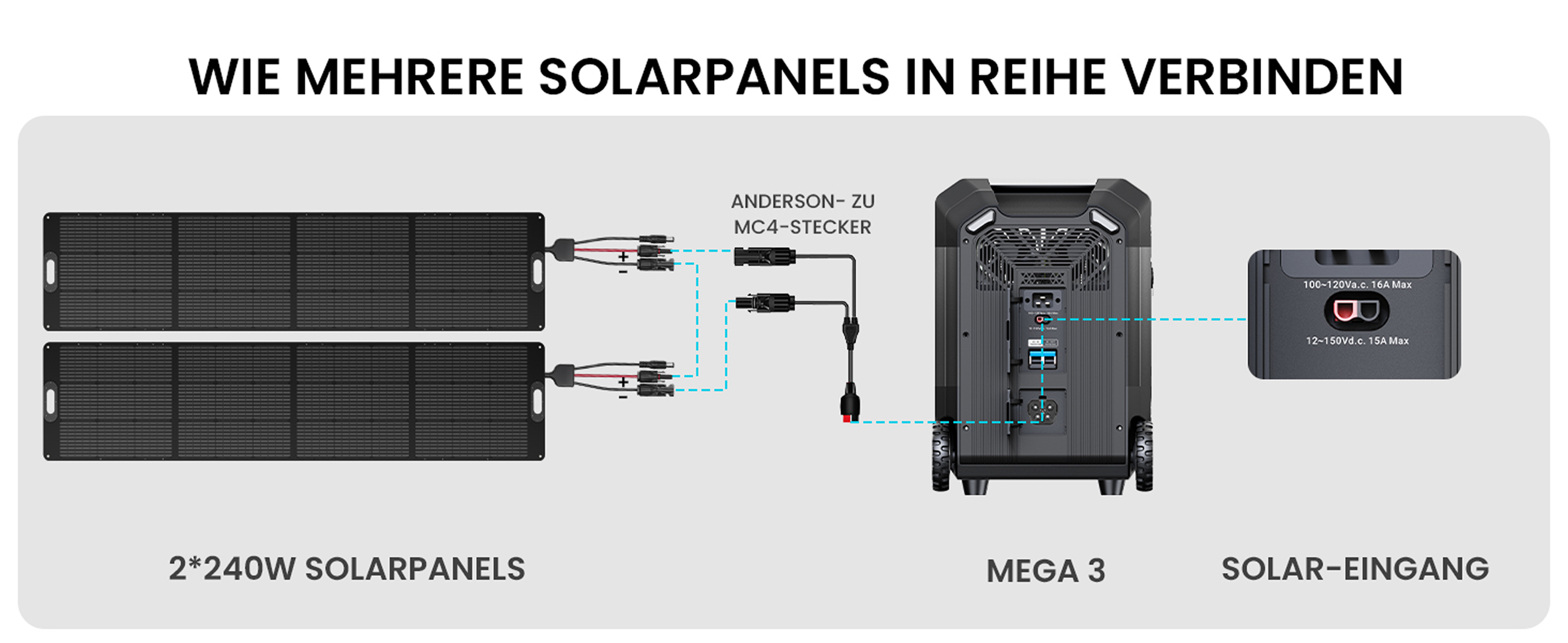

  • Solar Charging 2100W Max, 12-148V DC
    MPPT: 18-140V, 15A Max
  • AC + Solar Charging 3900W Max

GENERAL

  • Connectivity WiFi 2.4GHz/Bluetooth
  • App Control Yes
  • Net Weight 83.3lbs (37.8kg)
  • Dimensions (L x W x D) 25.2 x 11.9 x 17.2in (641.5 x 304.5 x 437.5mm)
  • Operating Temperature 0℃~40℃ (30℉~104℉)
  • Storage Temperature 0℃~40℃ (30℉~104℉)
  • Pass-through Charging Yes
  • Certification UN38.3.MSDs
  • Warranty Up to 6 Years
    (Basic 5 years warranty.
    Register for 1 Extra Year Free!)
  • IP Grade IP21

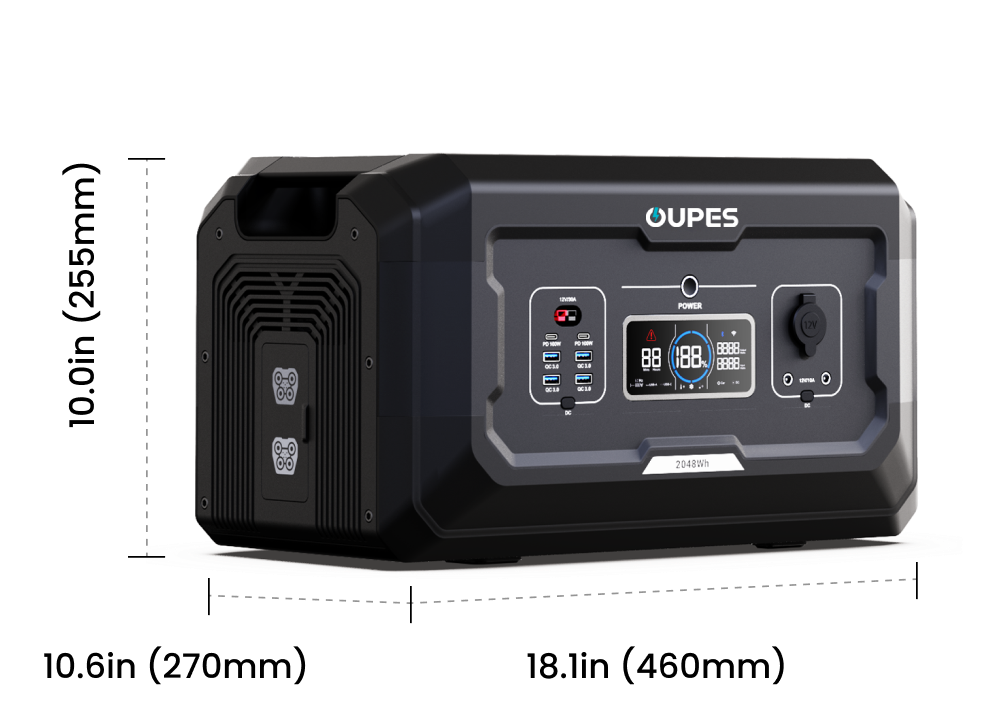

BATTERY

  • Basic Capacity 2048Wh
  • Type LFP (LiFePO4)
  • Cycles > 3500 cycles to 80%
  • BMS Yes

OUTPUT

  • Inverter Type Pure Sine Wave
  • USB-A Output 4*USB-A (18W Max)
  • USB-C Output 2*USB-C (PD 100W per port)
  • 12V DC Output 2*DC 5521
    1*Anderson (12V/30A)
    1*Car Lighter (12V/10A)

INPUT

  • AC Charging rechargable when connected with main unit
  • Solar Charging 2100W max, mppt:18V-140V, 15A max

GENERAL

  • Connectivity WiFi 2.4GHz/Bluetooth
  • App Control Yes
  • Net Weight 41.8lbs (18.9kg)
  • Dimensions (L x W x D) 18.1*10.6*10.0in (460*270*255mm)
  • Operating Temperature 0℃~40℃ (30℉~104℉)
  • Storage Temperature 0℃~40℃ (30℉~104℉)
  • Certification UN38.3.MSDs
  • Warranty Up to 6 Years
    (Basic 5 years warranty.
    Register for 1 Extra Year Free!)

POWER

  • Maximum Power 240W
  • Cell Lamination ETFE (Ethylene tetrafluoroethylene)
  • Cell Type Monocrystalline Silicon
  • Cell Efficiency ≥ 23%
  • Open Circuit Voltage (OCV) 24.6V (Vmp 20.5V)
  • Short Circuit Current (Isc) 12.3A (Imp 11.7A)

GENERAL

  • Connector Standard MC4 Connector
  • Weight 18.48lb (8.4kg)
  • Cable Length 196.8 inches
  • Dimensions (Unfolded) 99.5 x 23.2 x 1.4in (2529 x 590 x 35mm)
  • Dimension (Folded) 26.1 x 23.2 x 2.4 (665 x 590 x 60mm)
  • Operating Temperature
    -4℉ - 185℉ (-20°C - 85°C)
  • Best Working Temperature 77℉ (25℃)
  • IP Grade IP65
  • Warranty 12 Months
Download Manual > Download Manual > Download Manual >

In the Box

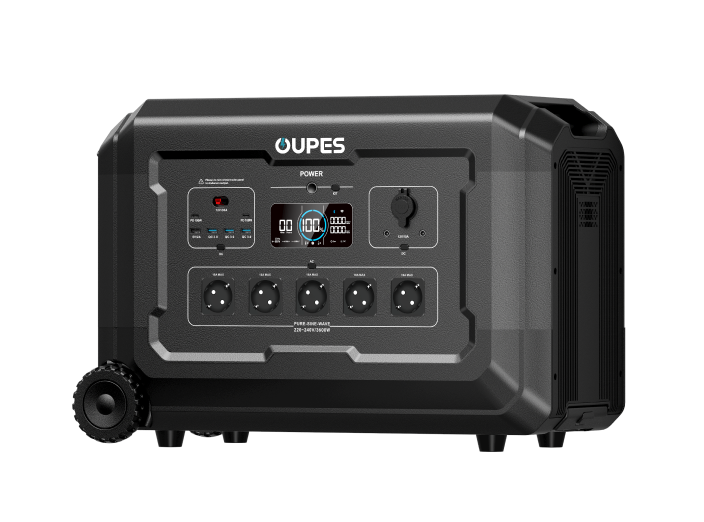

Mega 3 Power Station ×1

AC Charging Cable ×1

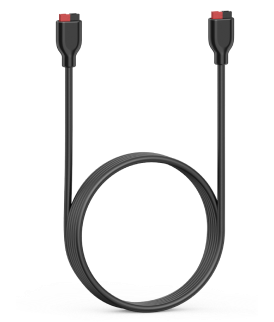

Anderson to Anderson Cable ×1

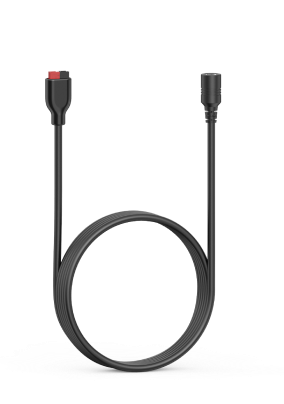

7909 to Anderson Charging Cable ×1

Car to Anderson Charging Cable ×1

MC4 to Anderson Charging Cable ×1

User Manual ×1

Warranty Card ×1
